Grid shift and computation window

This notebook covers two parameters that change which grid samples are computed: grid_shift applies a global offset to all grid coordinate values, and win restricts the output to a sub-region of the full-resolution grid.

What you’ll learn

• How grid_shift differs from array_in_origin

• How to apply a global coordinate offset to the grid

• How to restrict computation to a window with win

• How to size output datasets when using a window

Setting things up

We reuse all previously prepared inputs: source raster, grid file, grid mask, source raster mask, and the geometry polygons from notebook 005.

Shifting the grid coordinates with grid_shift

grid_shift accepts a (shift_row, shift_col) tuple of integers or floats and applies it to all grid coordinates before any grid geometry computation.

This is different from array_in_origin, which is used internally by the chain to account for the current tile’s origin within the source raster; array_in_origin does not affect grid geometry calculations, whereas grid_shift does.

with rasterio.open(GRID_IN_F64, "r") as grid_in_ds, \
        rasterio.open(RASTER_IN, "r") as array_src_ds, \
        rasterio.open(grid_mask_in_path, "r") as grid_mask_in_ds, \
        rasterio.open(raster_mask_in_path_u8, "r") as raster_mask_in_ds, \
        rasterio.open(output_raster_path, "w", **raster_out_open_args) as array_out_ds, \
        rasterio.open(output_mask_path, "w", **mask_out_open_args) as mask_out_ds:

    basic_grid_resampling_chain(
        grid_ds                        = grid_in_ds,
        grid_row_coords_band           = 1,
        grid_col_coords_band           = 2,
        grid_resolution                = grid_resolution,
        array_src_ds                   = array_src_ds,
        array_src_bands                = 1,
        array_out_ds                   = array_out_ds,
        interp                         = "cubic",
        nodata_out                     = 0,
        win                            = None,
        grid_shift                     = (50.5, 30.),    # <= global coordinate offset
        mask_out_ds                    = mask_out_ds,
        grid_mask_in_ds                = grid_mask_in_ds,
        grid_mask_in_unmasked_value    = grid_mask_in_valid_value,
        grid_mask_in_band              = 1,
        array_src_mask_ds              = raster_mask_in_ds,
        array_src_mask_band            = 1,
        array_src_mask_validity_pair   = (array_src_mask_validity_valid,
                                          array_src_mask_validity_invalid),
        array_src_geometry_origin      = (0., 0.),
        array_src_geometry_pair        = [geometry_valid, invalid_polygon],
    )

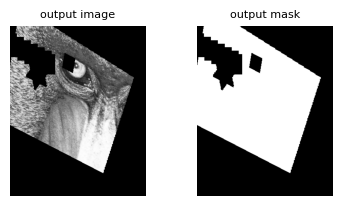

The shift is applied uniformly to all grid coordinates; the grid mask pattern itself is unaffected.

Limiting computation with win

The win parameter restricts the output to a sub-region of the full-resolution grid. Indices are expressed in the full-resolution output coordinate frame, after grid_resolution oversampling. The output datasets must be sized to match the window.

win = np.asarray([[120, 280], [70, 240]])

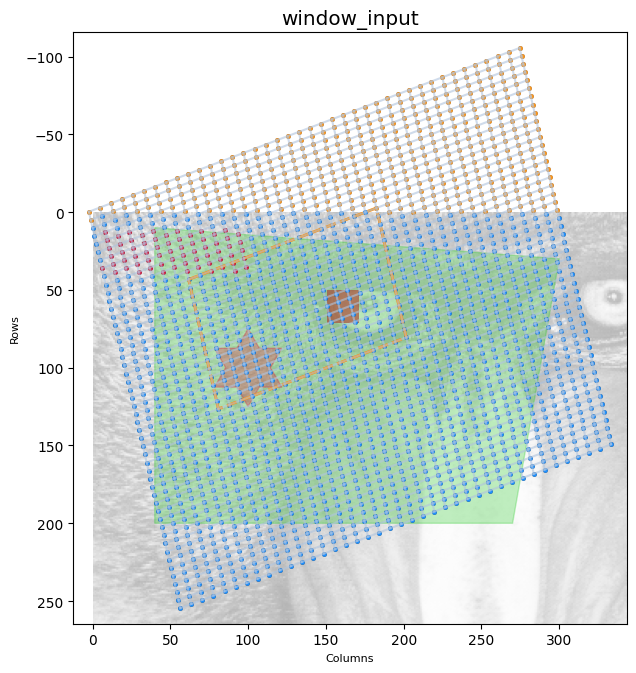

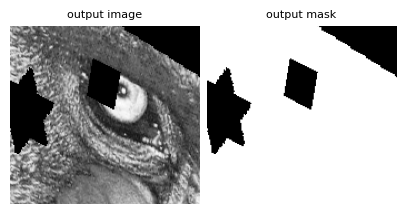

The orange dashed rectangle marks the requested computation window. The output dataset sizes must be adjusted accordingly.

raster_out_open_args_win = {
    "driver": "GTiff", "dtype": np.float64,
    "height": win[0][1] - win[0][0] + 1,
    "width":  win[1][1] - win[1][0] + 1,
    "count":  1,
}
mask_out_open_args_win = {
    "driver": "GTiff", "dtype": np.uint8,
    "height": win[0][1] - win[0][0] + 1,
    "width":  win[1][1] - win[1][0] + 1,
    "count":  1, "nbits": 1,
}

with rasterio.open(GRID_IN_F64, "r") as grid_in_ds, \
        rasterio.open(RASTER_IN, "r") as array_src_ds, \
        rasterio.open(grid_mask_in_path, "r") as grid_mask_in_ds, \
        rasterio.open(raster_mask_in_path_u8, "r") as raster_mask_in_ds, \
        rasterio.open(output_raster_path, "w", **raster_out_open_args_win) as array_out_ds, \
        rasterio.open(output_mask_path, "w", **mask_out_open_args_win) as mask_out_ds:

    basic_grid_resampling_chain(
        grid_ds                        = grid_in_ds,
        grid_row_coords_band           = 1,
        grid_col_coords_band           = 2,
        grid_resolution                = grid_resolution,
        array_src_ds                   = array_src_ds,
        array_src_bands                = 1,
        array_out_ds                   = array_out_ds,
        interp                         = "cubic",
        nodata_out                     = 0,
        win                            = win,            # <= restrict to a sub-window
        mask_out_ds                    = mask_out_ds,
        grid_mask_in_ds                = grid_mask_in_ds,
        grid_mask_in_unmasked_value    = grid_mask_in_valid_value,
        grid_mask_in_band              = 1,
        array_src_mask_ds              = raster_mask_in_ds,
        array_src_mask_band            = 1,
        array_src_mask_validity_pair   = (array_src_mask_validity_valid,
                                          array_src_mask_validity_invalid),
        array_src_geometry_origin      = (0., 0.),
        array_src_geometry_pair        = [geometry_valid, invalid_polygon],
    )
