Geometry masks

Geometry masks are Shapely polygons that the chain rasterizes at tile level before calling the core resampling function. All source-array masks (raster mask + geometry masks) are merged into a single mask that is passed to array_grid_resampling. This feature is only available in the chain layer; the core function does not see polygons directly.

What you’ll learn

  • The role of array_src_geometry_pair (valid + invalid polygons)

  • How to use array_src_geometry_origin to shift polygon coordinates

  • How geometry masks combine with the source raster mask

Setting things up

We reuse the source raster, grid file, grid mask and source raster mask from previous notebooks.

Defining the geometries

array_src_geometry_pair is a length-2 sequence of Shapely polygons:

  • index 0 – the valid geometry: pixels inside are kept valid,

  • index 1 – the invalid geometry: pixels inside are forced invalid.

Either entry may be None. Coordinates are expressed in the source raster frame; array_src_geometry_origin shifts them if needed.

from shapely.geometry import Polygon

geometry_valid  = Polygon([(40, 10), (300, 30), (270, 200), (40, 200)])
invalid_polygon = create_star_polygon(100, 100, 50)

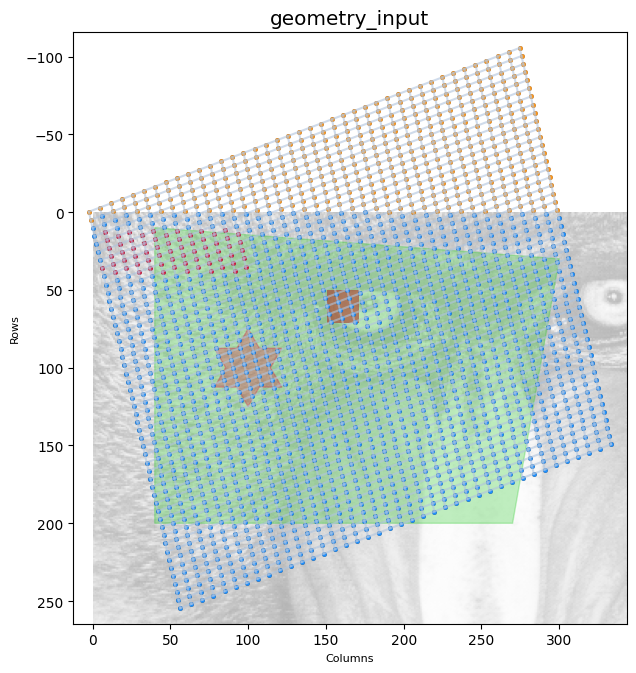

The figure above shows the green valid polygon and the red star-shaped invalid polygon, together with the grid nodes and the source raster mask.

Running the chain with geometry masks

with rasterio.open(GRID_IN_F64, "r") as grid_in_ds, \
        rasterio.open(RASTER_IN, "r") as array_src_ds, \
        rasterio.open(grid_mask_in_path, "r") as grid_mask_in_ds, \
        rasterio.open(raster_mask_in_path_u8, "r") as raster_mask_in_ds, \
        rasterio.open(output_raster_path, "w", **raster_out_open_args) as array_out_ds, \
        rasterio.open(output_mask_path, "w", **mask_out_open_args) as mask_out_ds:

    basic_grid_resampling_chain(
        grid_ds                        = grid_in_ds,
        grid_row_coords_band           = 1,
        grid_col_coords_band           = 2,
        grid_resolution                = grid_resolution,
        array_src_ds                   = array_src_ds,
        array_src_bands                = 1,
        array_out_ds                   = array_out_ds,
        interp                         = "cubic",
        nodata_out                     = 0,
        mask_out_ds                    = mask_out_ds,
        grid_mask_in_ds                = grid_mask_in_ds,
        grid_mask_in_unmasked_value    = grid_mask_in_valid_value,
        grid_mask_in_band              = 1,
        array_src_mask_ds              = raster_mask_in_ds,
        array_src_mask_band            = 1,
        array_src_mask_validity_pair   = (array_src_mask_validity_valid,
                                          array_src_mask_validity_invalid),
        array_src_geometry_origin      = (0., 0.),
        array_src_geometry_pair        = [geometry_valid, invalid_polygon],
    )
