Using the GridR’s core build mask API

This guide demonstrates how to use GridR’s core masking feature.

It covers the following topics:

Definition of GridR’s adopted conventions
Basic usage and understanding of the grid_rasterize module
Creating a mask applicable to raster data from vector geometries and predefined raster masks with the grid_mask module

Setting things up

For this guide we have to import some tiers packages (numpy and shapely) and gridr.core.grid modules.

import numpy as np
import shapely

from gridr.core.grid import grid_rasterize
from gridr.core.grid import grid_commons
from gridr.core.grid import grid_mask

Introduction : Pixels, Images and Conventions

A pixel (short for “picture element”) is the smallest individual unit of a digital image. Imagine it as a tiny, square-shaped dot that contains a single color at its central position. Raster images are fundamentally composed of a grid of these pixels.

When performing a geometric transformation on a raster image, it’s crucial to associate a coordinate system with it. This system is defined by:

Shape: The dimensions (size) of the raster image.
Resolution: The integer step size between adjacent elements along the same dimension. This is particularly relevant when addressing resampling grids as rasters for tasks like mask generation.
Origin: The floating-point location of the center of the upper-left (first) pixel.

There are generally two conventions for defining pixel coordinates within the community:

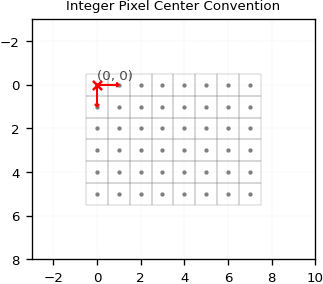

Integer Coordinates for Pixel Center: The center of a pixel is associated with whole integer coordinates (e.g., (0, 0)). This is the convention adopted by GridR.

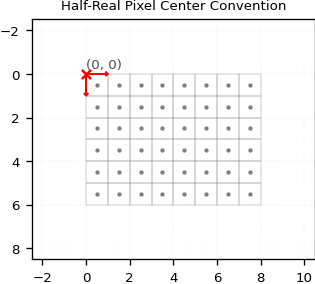

Half-Real Coordinates for Pixel Center: The center of a pixel is associated with half-real coordinates (e.g., (0.5, 0.5)). This convention is used by some geometric libraries.

Lets illustrate this 2 conventions in a simple case.

shape, resolution, origin_int, origin_half = (6, 8), (1, 1), (0., 0.), (0.5, 0.5)

It’s crucial to grasp these concepts for manipulating geometries to define valid or invalid areas within a raster.

GridR’s python API methods currently support Polygon, MultiPolygon, or list of Polygon objects as geometries. To keep things simple, we’ll focus on a single Polygon here.

In GridR, a geometry is defined by its mathematical feature (e.g., a polygon) and its geometry_origin. This geometry_origin can differ from the coordinate system’s origin. This allows GridR to account for the conventions adopted by the geometry provider or apply a shift for its specific application.

It’s important to note that geometry adhere to Shapely’s xy-coordinate order whereas geometry_origin definition order is compliant with the yx-order previously adopted for origin, shape and resolution.

geometry_origin=(0.5, 0.5)
geometry = shapely.geometry.Polygon([
        (3.5, 2.5),
        (7.5, 2.5),
        (7.5, 6.5),
        (3.5, 6.5)
        ])

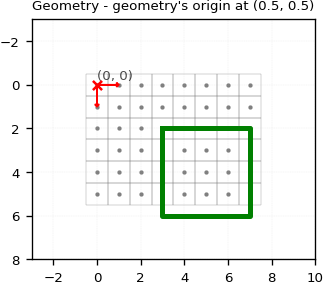

In the previous example, we set the geometry_origin to (0.5, 0.5). This implies the geometry is defined within a coordinate system where:

Pixel centers are treated as half-real coordinates.
The geometry_origin coordinate needs to be aligned with the first pixel of the raster.

As you can see, the upper-left corner (x=3.5, y=2.5) correctly aligns with the center of the pixel cell at (x=3, y=2).

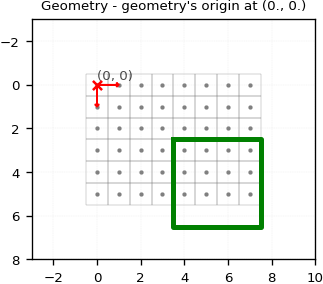

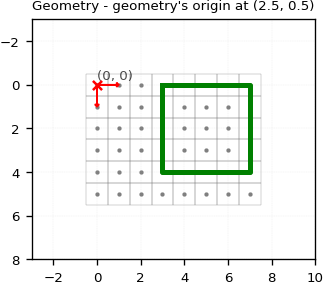

Let’s illustrate what happens when we change the geometry_origin to (0., 0.) in one case, and then to (-2.5, 1.5) in another.

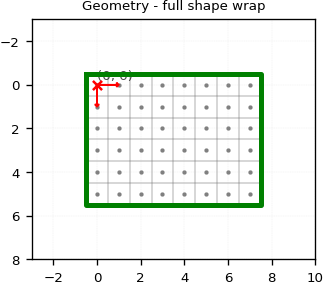

At last, lets define the geometry to wrap the full raster using the same convention.

geometry_origin=(0., 0.)
geometry = shapely.geometry.Polygon([
        (-0.5, -0.5),
        (shape[1]-1+0.5, -0.5),
        (shape[1]-1+0.5, shape[0]-1+0.5),
        (-0.5, shape[0]-1+0.5)
        ])

GridR’s rasterize module

Before adressing the main “masking” subject, we briefly describe here GridR’s rasterization feature, which is embedded in the Python grid_rasterize module and is the build_mask core method.

GridR integrates two libraries for rasterization: shapely and rasterio. While shapely-based methods are still available in the code, they are significantly outperformed by rasterio. Therefore, we will focus exclusively on the rasterio-based rasterization algorithm in this discussion.

Please note that GridR does not currently include a Rust implementation of a rasterization algorithm.

Let’s illustrate the usage of the grid_rasterize.grid_rasterize() method.

# Use the rasterio rasterize algorithm
alg = grid_rasterize.GridRasterizeAlg.RASTERIO_RASTERIZE
kwargs_alg = {}

# Define values to fill with
inner_value, outer_value, default_value = 1, 2, 0

# Reset the geometry to the previously used geometry
geometry_origin=(0.5, 0.5)
geometry = shapely.geometry.Polygon([
        (3.5, 2.5),
        (6.5, 2.5),
        (6.5, 4.5),
        (3.5, 4.5)
        ])

# Rasterize
raster = grid_rasterize.grid_rasterize(
        grid_coords=None,
        shape=shape,
        origin=geometry_origin,
        resolution=resolution,
        win=None,
        inner_value=inner_value,
        outer_value=outer_value,
        default_value=default_value,
        geometry=geometry,
        alg=alg,
        dtype=np.uint8,
        **kwargs_alg,
        )

A lot’s happening here!

First, you might have noticed the grid_coords parameter set to None. There are two ways to define the target grid coordinate system: either by providing the coordinate array via grid_coords or by supplying the triplet (shape, origin, resolution).

You may also have seen that we passed geometry_origin as origin. This is actually the correct approach here, as grid_rasterize’s internal convention aligns with GridR’s convention, and it automatically handles the resolution.

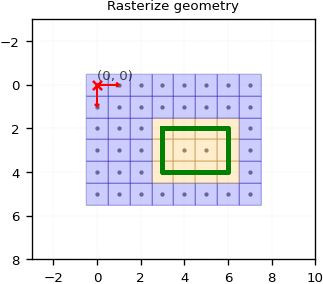

Pixels whose centroids were inside or on the contour of the geometry have been “burned” to the inner_value (orange). The remaining pixels are considered outside the geometry and have been set to outer_value (blue). In this case, the default_value wasn’t used. It’s only applied if an empty list is passed as the geometry as illustrated below (a None-defined geometry will raise an exception).

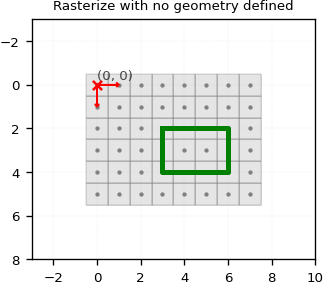

# Rasterize
raster = grid_rasterize.grid_rasterize(
        grid_coords=None,
        shape=shape,
        origin=geometry_origin,
        resolution=resolution,
        win=None,
        inner_value=inner_value,
        outer_value=outer_value,
        default_value=default_value,
        geometry=[],
        alg=alg,
        dtype=np.uint8,
        **kwargs_alg,
        )

Let’s examine the win parameter. This parameter can be used to limit the computation to a subregion of the full-shaped target grid.

The window definition adheres to GridR’s window definition: a list of tuples defining the inclusive limit indices for all axes (row first, then column).

win=np.array([(1,3),(5,7)])

raster = grid_rasterize.grid_rasterize(
        grid_coords=None,
        shape=shape,
        origin=geometry_origin,
        resolution=resolution,
        win=win,
        inner_value=inner_value,
        outer_value=outer_value,
        default_value=default_value,
        geometry=geometry,
        alg=alg,
        dtype=np.uint8,
        **kwargs_alg,
        )

array([[2, 2, 2],
       [1, 1, 2],
       [1, 1, 2]], dtype=uint8)

As you can see, the output raster shape and values corresponds to the window.

Generating Masks with GridR

GridR provides the core.grid.grid_mask.build_mask method that can serve to generate mask.

Here is its signature :

def build_mask(
        shape: Tuple[int, int],
        resolution: Tuple[int, int],
        out: np.ndarray,
        geometry_origin: Optional[Tuple[float, float]] = None,
        geometry_pair: Optional[Tuple[Optional[GeometryType],
                Optional[GeometryType]]] = None,
        mask_in: Optional[np.ndarray] = None,
        mask_in_target_win: Optional[np.ndarray] = None,
        mask_in_resolution: Optional[Tuple[int, int]] = None,
        oversampling_dtype: Optional[np.dtype] = None,
        mask_in_binary_threshold: float = 0.999,
        rasterize_kwargs: Optional[Dict] = None,
        init_out: bool = False,
        ) -> Optional[np.ndarray]

Before we go further with this method, lets talk about GridR masking value convention.

In the same python module as the buil_mask method, GridR defines its convention for masking validity Value :

class Validity(IntEnum):
    """Define the GridR convention regarding validity
    """
    INVALID = 0
    VALID = 1

The docstring of this method is self explainatory. Here we quote the first lines :

The `build_mask` operates solely on raster data and does not perform I/O.
It combines information from two distinct mask types to build a binary raster
mask at a target resolution (currently only full resolution, i.e., (1,1), is implemented).

Have a look at the full docstring and code for further details !

You might now be familiar with some of the parameters in this method.

Let’s focus on the new ones.

The `geometry_pair` argument

The geometry_pair argument defines this mask using vectors. It expects a tuple with two GeometryType elements:

The first element represents valid geometries.
The second element represents invalid geometries.

GeometryType is a type defined in the core.grid.grid_rasterize module :

GeometryType = Union[
        shapely.geometry.Polygon,
        List[shapely.geometry.Polygon],
        shapely.geometry.MultiPolygon
        ]

It defines what kind of geometry are supported by the rasterization process.

Let’s play with this parameter.

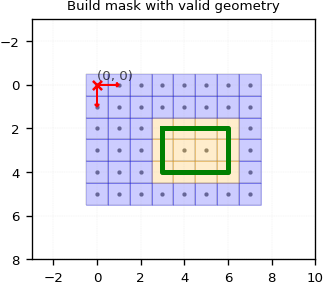

First we reproduce the same as previously considering only a valid geometry.

# Use the rasterio rasterize algorithm
rasterize_kwargs = {
    'alg': grid_rasterize.GridRasterizeAlg.RASTERIO_RASTERIZE,
    'kwargs_alg': {}
}

# Reset the geometry to the previously used geometry
geometry_origin=(0.5, 0.5)

geometry_valid = shapely.geometry.Polygon([
        (3.5, 2.5),
        (6.5, 2.5),
        (6.5, 4.5),
        (3.5, 4.5)
        ])

# Build mask
raster = grid_mask.build_mask(
        shape=shape,
        resolution=(1, 1),
        out=None,
        geometry_origin=geometry_origin,
        geometry_pair=[geometry_valid, None],
        rasterize_kwargs=rasterize_kwargs,
        )

array([[0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 1, 1, 1, 1, 0],
       [0, 0, 0, 1, 1, 1, 1, 0],
       [0, 0, 0, 1, 1, 1, 1, 0],
       [0, 0, 0, 0, 0, 0, 0, 0]], dtype=uint8)

As you can see, we achieve the same result as before. Here, the Validity.VALID value fills the valid geometry, while Validity.INVALID fills the remaining pixels.

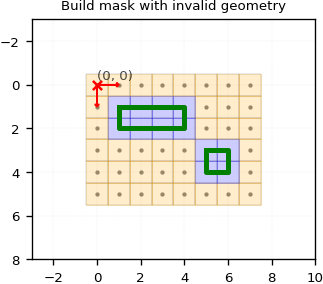

Now, let’s define a solo invalid geometry. We’ll make this a bit more complex by defining a couple of invalid Polygons.

geometry_invalid = [
    shapely.geometry.Polygon([
        (1.5, 1.5),
        (4.5, 1.5),
        (4.5, 2.5),
        (1.5, 2.5)
        ]),
    shapely.geometry.Polygon([
        (5.5, 3.5),
        (6.5, 3.5),
        (6.5, 4.5),
        (5.5, 4.5)
        ]),]

# Build mask
raster = grid_mask.build_mask(
        shape=shape,
        resolution=(1, 1),
        out=None,
        geometry_origin=geometry_origin,
        geometry_pair=[None, geometry_invalid],
        rasterize_kwargs=rasterize_kwargs,
        )

array([[1, 1, 1, 1, 1, 1, 1, 1],
       [1, 0, 0, 0, 0, 1, 1, 1],
       [1, 0, 0, 0, 0, 1, 1, 1],
       [1, 1, 1, 1, 1, 0, 0, 1],
       [1, 1, 1, 1, 1, 0, 0, 1],
       [1, 1, 1, 1, 1, 1, 1, 1]], dtype=uint8)

Here, the Validity.INVALID value fills the invalid geometries, while Validity.VALID fills the remaining pixels.

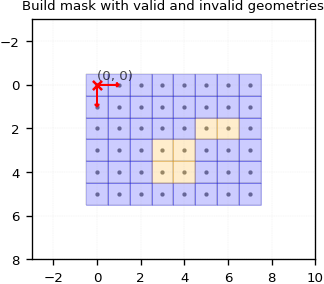

Now, let’s see what happens if we define both valid and invalid geometries.

# Build mask
raster_geom = grid_mask.build_mask(
        shape=shape,
        resolution=(1, 1),
        out=None,
        geometry_origin=geometry_origin,
        geometry_pair=[geometry_valid, geometry_invalid],
        rasterize_kwargs=rasterize_kwargs,
        )

array([[0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 1, 1, 0],
       [0, 0, 0, 1, 1, 0, 0, 0],
       [0, 0, 0, 1, 1, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0, 0]], dtype=uint8)

Let’s break down what’s happening here. For a pixel to be validated, it must be validated by both the valid and the invalid mask. Internally, two separate rasterizations are performed, and their results are then merged using a binary “AND” operation.

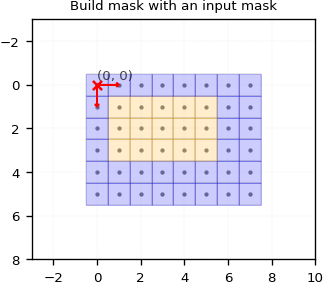

Using raster and vector masks all together

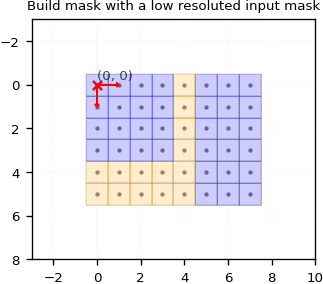

Let’s now demonstrate how all masking modes can work together.

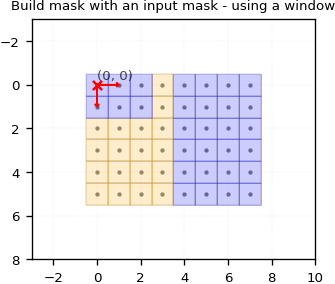

We will use the same geometry masks as before and the last used input raster mask.

# Init the mask to be invalid everywhere
input_mask_lowres = np.full((3,3), grid_mask.Validity.INVALID, dtype=np.uint8)

# Define a valid area
input_mask_lowres[0, 1] = grid_mask.Validity.VALID
input_mask_lowres[1, 1] = grid_mask.Validity.VALID
input_mask_lowres[1, 0] = grid_mask.Validity.VALID
input_mask_lowres[2, 1] = grid_mask.Validity.VALID
input_mask_lowres[2, 0] = grid_mask.Validity.VALID

input_mask_lowres_resolution = (4, 4)

geometry_origin=(0.5, 0.5)

geometry_valid = shapely.geometry.Polygon([
        (3.5, 2.5),
        (6.5, 2.5),
        (6.5, 4.5),
        (3.5, 4.5)
        ])

geometry_invalid = [
    shapely.geometry.Polygon([
        (1.5, 1.5),
        (4.5, 1.5),
        (4.5, 2.5),
        (1.5, 2.5)
        ]),
    shapely.geometry.Polygon([
        (5.5, 3.5),
        (6.5, 3.5),
        (6.5, 4.5),
        (5.5, 4.5)
        ]),]

raster = grid_mask.build_mask(
        shape=shape,
        resolution=(1, 1),
        out=None,
        geometry_origin=geometry_origin,
        geometry_pair=[geometry_valid, geometry_invalid],
        mask_in=input_mask_lowres,
        mask_in_target_win=None,
        mask_in_resolution=input_mask_lowres_resolution,
        oversampling_dtype=np.float64,
        mask_in_binary_threshold=0.99,
        rasterize_kwargs=rasterize_kwargs,
        )

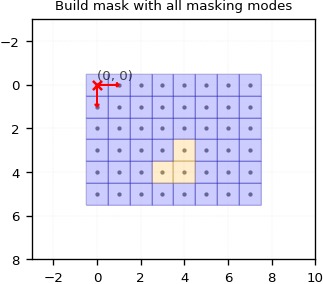

Only 3 pixels are valid here.

Remember, when combining valid and invalid geometries, a pixel must be validated by each geometry mode to be considered valid. The exact same principle applies when you add the input raster mask mode:

Generated mask from geometries

[[0 0 0 0 0 0 0 0] [0 0 0 0 0 0 0 0] [0 0 0 0 0 1 1 0] [0 0 0 1 1 0 0 0] [0 0 0 1 1 0 0 0] [0 0 0 0 0 0 0 0]]
Generated mask from input raster mask

[[0 0 0 0 1 0 0 0] [0 0 0 0 1 0 0 0] [0 0 0 0 1 0 0 0] [0 0 0 0 1 0 0 0] [1 1 1 1 1 0 0 0] [1 1 1 1 1 0 0 0]]
Binary AND merge

[[0 0 0 0 0 0 0 0] [0 0 0 0 0 0 0 0] [0 0 0 0 0 0 0 0] [0 0 0 0 1 0 0 0] [0 0 0 1 1 0 0 0] [0 0 0 0 0 0 0 0]]
